MZPS0850 Series
◆ MZPS0850(binocular) and MZPS0850T(trinocular)
◆ Parallel optical system, zoom body magnification range : 0.8X~5X
◆ Orthoscopic image, large depth of field, long working distance, available to attach various accessories
◆ Widely
used in science research, modern biology, medicine, environment, farming, police, micro-electronics, semiconductors and
etc which require high precision
|
|
|
|
|
Zoom driver |
Parallel optical system, 0.8X~5X continuous zoom body |
|
Magnification |
Standard total magnification: 8X~50X, the max. magnification: 225X. |
|
Eyepiece |
High eye point and wide field eyepieces(10X，Φ22mm). |
|
Objective |
1X Plane objective |
|
WD |
91mm |
|
Interpupillary distance adjustment range (10X eyepiece) |
52mm~76mm |
|
Diopter adjustment range |
±6 Diopter |
|
Focus range |
50mm（Track stand: 100mm） |
|
Binocular eyetubes |
Inclined 45° |
|
The holder and the head matching dimension |
Φ76mm |
|
Distance between the center of the pole and the center of the holder |
140mm |
|
Diameter of the pole |
Φ25mm |
|
Diameter of the center working stage |
Φ95mm |
|
Eyepiece |
Item |
Specification of different auxiliary objective |
|||
|
0.5X |
0.7X |
1X |
1.5X（Auxiliary） |
||
|
10X |
Total Mag. |
4X~25X |
5.6X~35X |
8X~50X |
12X~75X |
|
FOV（mm） |
Φ55~Φ8.8 |
Φ39.3~Φ6.3 |
Φ27.5~Φ4.4 |
Φ18.33~Φ2.93 |
|
|
15X |
Total Mag. |
6X~37.5X |
8.4X~52.5X |
12X~75X |
18X~112.5X |
|
FOV（mm） |
Φ42.5~Φ6.8 |
Φ30.36~Φ4.86 |
Φ21.25~Φ3.4 |
Φ14.17~Φ2.27 |
|
|
20X |
Total Mag. |
8X~50X |
11.2X~70X |
16X~100X |
24X~150X |
|
FOV（mm） |
Φ35~Φ5.6 |
Φ25~Φ4 |
Φ17.5~Φ2.8 |
Φ11.67~Φ1.87 |
|
|
30X |
Total Mag. |
12X~75X |
16.8X~105X |
24X~150X |
36X~225X |
|
FOV（mm） |
Φ22.5~Φ3.6 |
Φ16.1~Φ2.57 |
Φ11.25~Φ1.8 |
Φ7.5~Φ1.2 |
|
|
WD（mm） |
186 |
135 |
91 |
40 |
|
Notes:
1. Please use 1X plane objective together when using 1.5X auxiliary objective.
2. When 0.5X or lower magnification auxiliary objective applied, track stands can not be used.
Feature accessories：
1. Objectives
|
|
◆ 0.5X achromatic objective PS-W0.5, working distance: 186mm

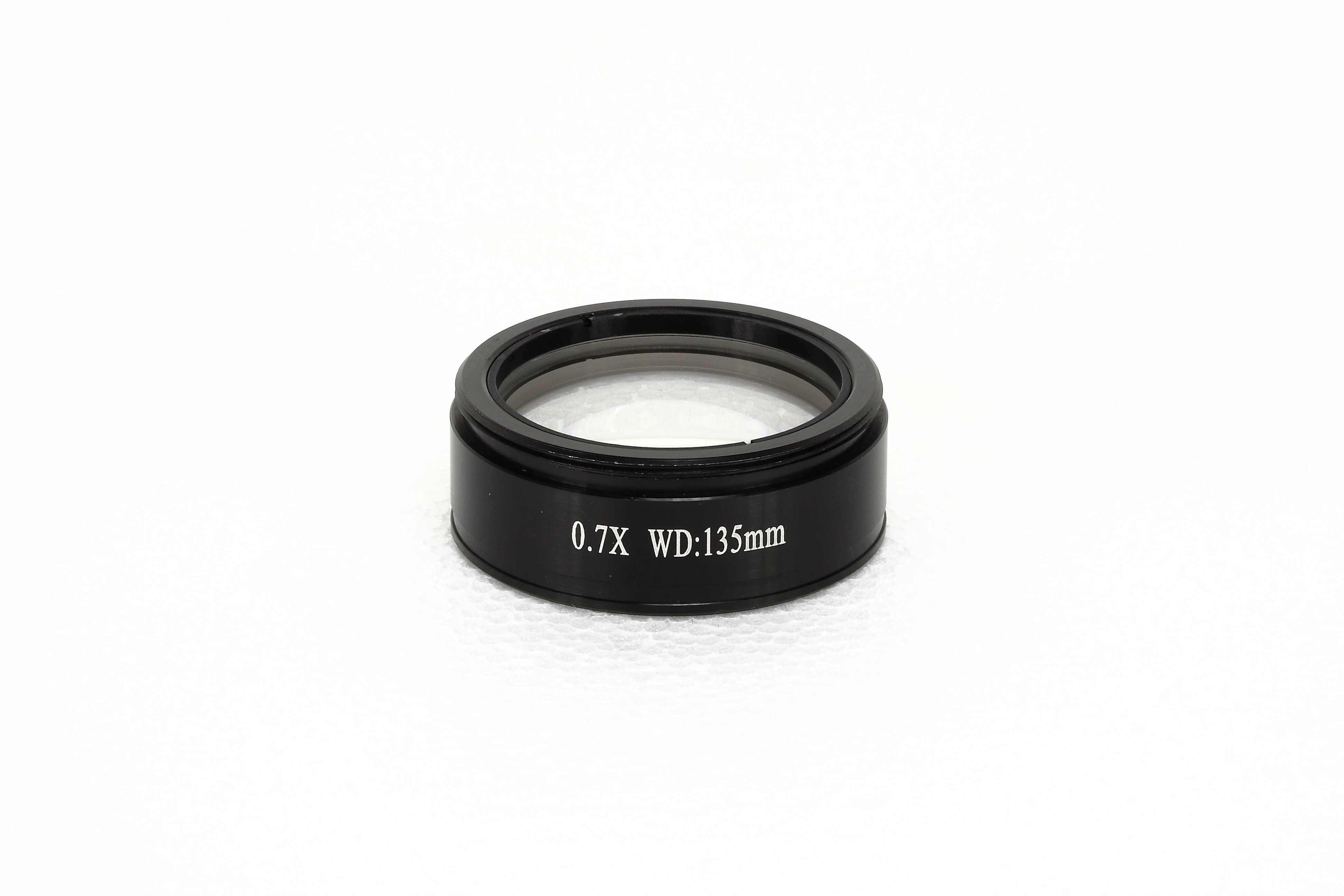

◆ 0.7X achromatic objective PS-W0.7, working distance: 135mm

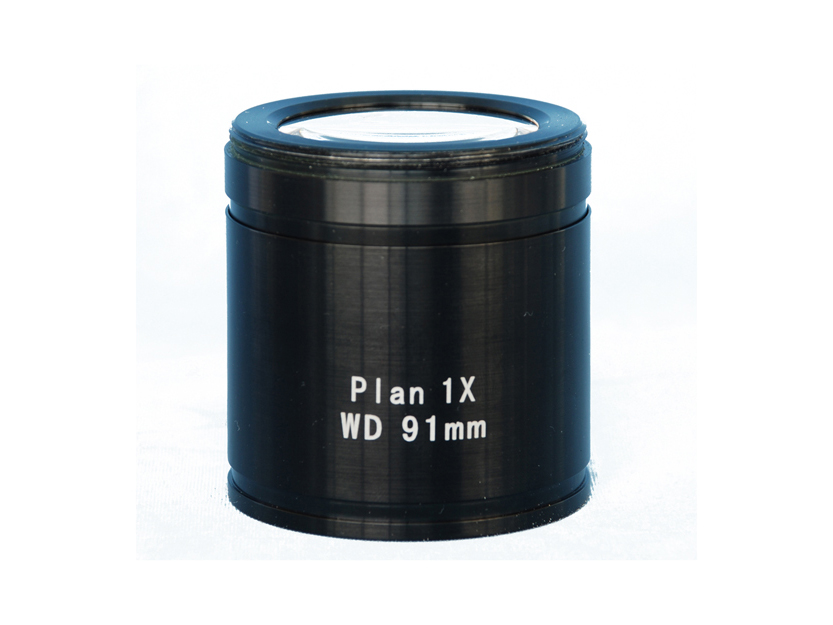

◆ 1X plane achromatic objective PS-WP1.0, working distance: 91mm
◆ 1.5X achromatic auxiliary objective PS-W1.5, working distance: 40mm.(Be used with PS-WP1.0 together)
2. Trinocular beam splitter
|
|

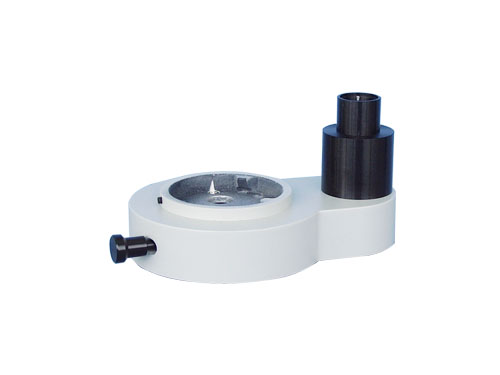

◆ PS-T tension bar trinocular beam splitter' permeant light ratio throught the eyepiece observation: Left 100%, right 0%

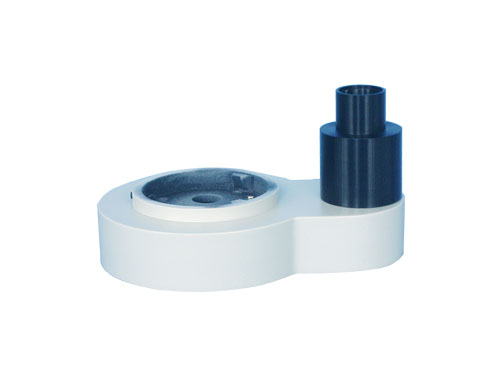

◆PS-T1 trinocular beam splitter' permeant light ratio throught the eyepiece observation: Left 50%, right 50%
Optional Accessories：
|
|
SD1~SD18 |
|
|
|
U1, U2, U3, U4, U1c, U2c, U3c |
|
|
|
WFH10X, SWF15X, SWF20X, SWF30X |
|
|
|
WFH10X-CM0.1XY |
|
|
|
PS-W0.5, PS-W0.7, PS-WP1.0, PS-W1.5 |
|
|
|
C0.3-S、C0.5-S、C1.0-S |
|
|
|
DT01 |
|
|
|
PT02 |
|
|
|
CDM1.0
Note: It should be used with CCD adapter together. |
|
|
|
ML01, ML02, MLR60, LGY-150Ω |
|
|
|
S7665, S10086 Note: Please explain in advance while the mechanical stage needs to be installed on the stand, the stand needs specially be increased the screw holes. |
Notes: The track stand for MZPS0850 is different from the standard, and identified as"p", for example, if SD4 used for parallel stereo microscopes, it will be indicated as SD4P.
